Honeywell Gas Pressure Regulators (former RMG)

RMG Regel + Messtechnik GmbH, founded in 1931 in Kassel, Germany, has developed into a global player in the field of measuring and regulating equipment for natural gas applications. RMG took over several companies, such as Gorter Controls and Bryan Donkin. In 2009, Honeywell bought RMG as part of the strategy to become a significant player in equipment for (natural) gas applications. At that time, RMG consisted of two divisions. One for gas regulators and one for gas measuring systems.

Honeywell Gas Technologies

At the end of 2016 the gas measuring division was hived off by Honeywell and the division for gas regulators is continued under the name Honeywell Gas Technologies.

Gas Products

HON 300

• Gas pressure regulator, direct acting with safety shut-off valve (SSV)
• Diameter DN25
• Flanged connection PN16/ANSI 150#
• Maximum inlet pressure 16 bar
• Outlet pressure 20 mbar-2 bar

HON 330

• Gas pressure regulator, direct acting with safety shut-off valve (SSV)
• Diameter DN25-DN100
• Flanged connection PN16/ANSI 150#
• Maximum inlet pressure 16 bar
• Outlet pressure 20 mbar-1 bar

HON 370

• Gas pressure regulator, direct acting with safety shut-off valve (SSV)
• Diameter DN25-DN150
• Flanged connection PN16/ANSI 150#
• Maximum inlet pressure 20 bar
• Exhaust pressure 20 mbar-5 bar
• Built-in exhaust safety
• High capacity

HON 372

• Gas pressure regulator, pilot operated with safety shut-off valve (SSV)
• Diameter DN25-DN150
• Flanged connection PN16/ANSI 150#
• Maximum inlet pressure 20 bar
• Outlet pressure 10 mbar-15 bar
• High capacity

HON 402

• Gas pressure regulator, pilot operated with safety shut-off valve (SSV)
• Diameter DN25-DN100
• Flanged connection PN16-PN40/ANSI 150-300#
• Maximum inlet pressure 50 bar
• Outlet pressure 20 mbar-40 bar
• High capacity and turndown ratio
• Very quiet
• Easy to maintain without dismounting

HON 5020

• Gas pressure regulator, pilot operated
• Diameter DN25 – DN150/1″-6″
• Flanged connection ANSI 150-600#
• Maximum inlet pressure 102 bar
• Outlet pressure 15 mbar-40 bar
• High capacity and turndown ratio
• Very quiet
• Easy to maintain without dismounting

HON 512

• Gas pressure regulator, pilot operated with safety shut-off valve (SSV)
• Diameter DN25-DN300
• Flanged connection PN25-PN40/ANSI 150-600#
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar-90 bar
• Large range and very quiet

HON 219

• Gas pressure regulator, direct acting
• Diameter 3/4″, connection 10, 12 or 16 mm
• Maximum inlet pressure 50 bar
• Outlet pressure 8 mbar-8 bar
• Built-in exhaust safety

HON 720

• Safety shut-off valve (SSV), direct acting
• Diameter DN25-DN100
• Flanged connection PN16-PN25/ANSI 150#
• Low pressure drop
• Adjustable for under or overpressure

HON 721

• Safety shut-off valve (SSV), direct acting or pilot operated
• Diameter DN50-DN150
• Flanged connection PN16-PN40/ANSI 150-300#
• Low pressure drop
• Adjustable for under or overpressure

HON 832

• Safety relief (pressure relief valve)
• Maximum pressure 100 bar
• Setting range 0.5-32 bar
• Connection 10, 12 or 16 mm (compression fitting)

HON 835

• Safety relief (pressure relief valve)
• Maximum pressure 25 bar
• Diameter 1″
• Connection G 1″/28 mm (compression fitting)

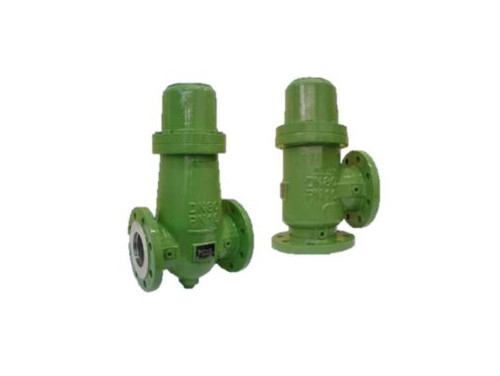

HON 906/907

• Gas filter
• Maximum pressure 16/25 Bar
• Diameter DN25-N150
• Flanged connection PN16-PN25/ANSI 150#

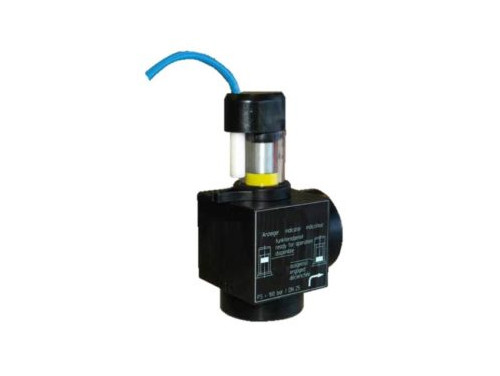

HON 917

• Gas leak indicator
• Built-in overpressure protection
• Maximum pressure 100 bar
• Connection G 1″/10-28 mm (compression fitting)
